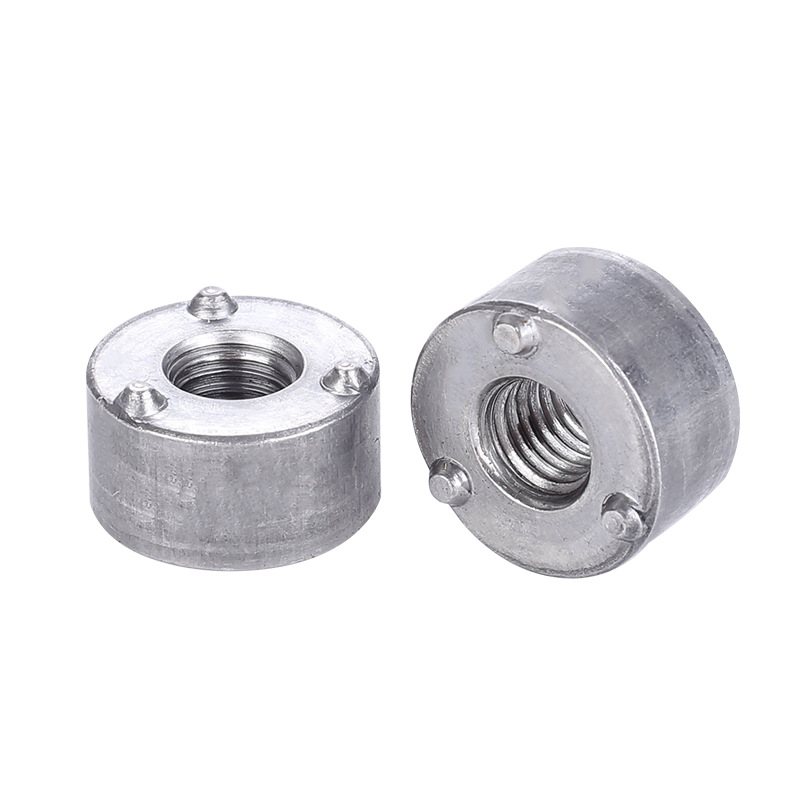

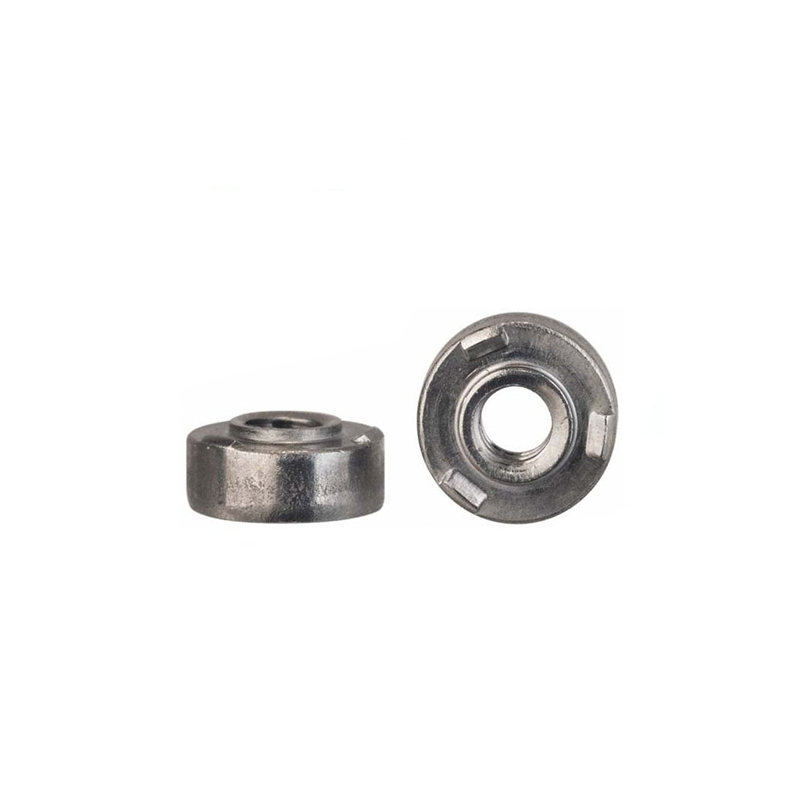

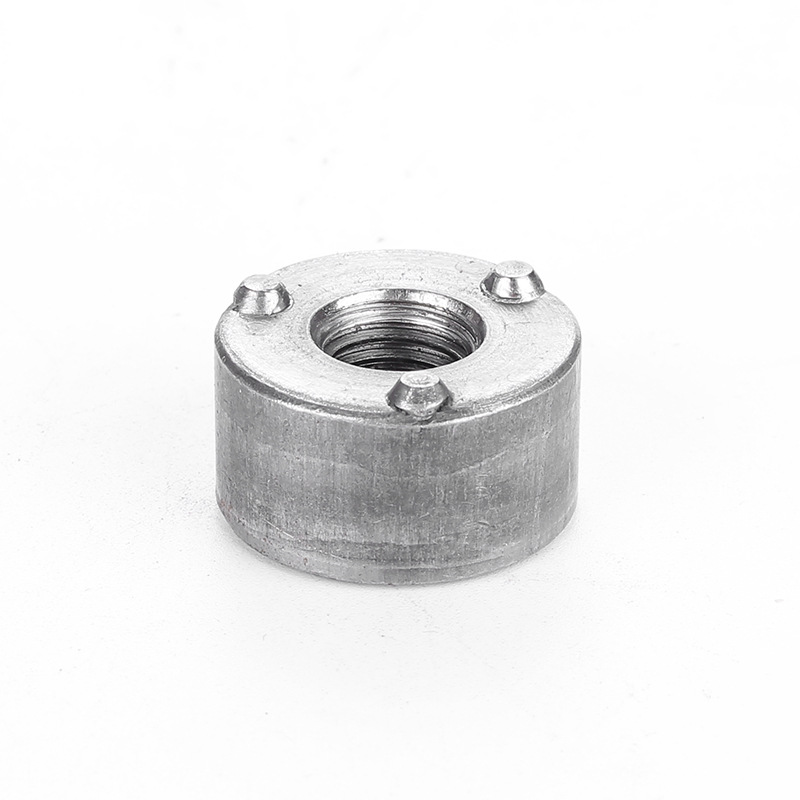

    다목적 용접 둥근 너트
    • 다목적 용접 둥근 너트다목적 용접 둥근 너트
    • 다목적 용접 둥근 너트다목적 용접 둥근 너트
    • 다목적 용접 둥근 너트다목적 용접 둥근 너트
    • 다목적 용접 둥근 너트다목적 용접 둥근 너트
    • 다목적 용접 둥근 너트다목적 용접 둥근 너트

    다목적 용접 둥근 너트

    전세계 고객은 산업 전역의 제조업체와 함께 신뢰할 수 있고 내구성있는 패스너 솔루션을 위해 Xiaoguo®를 신뢰합니다. 다목적 용접 둥근 너트의 설치는 매우 효율적이므로 투영 용접 장비를 사용하여 대량 생산을 가능하게합니다.
    모델:QC/T 867-2011

    문의 보내기

    제품 설명

    Versatile Weld round nuts are everywhere in car making and heavy transport. They’re used to hold on body panels, frame parts, brackets, and trim. Being able to make a strong, fixed threaded spot on thin sheet metal is really useful for keeping assembly lines moving efficiently.

    In a vibrating environment, objects remain stable and prevent loosening. This feature provides reliable protection for key vehicle components—whether engine mounts or suspension components—as long as the vehicle is in normal use, they can remain tightened, fundamentally reducing safety hazards and failure risks caused by loose components.

    Product details

    Versatile Weld round nuts get used a lot in making commercial and industrial furniture, shelves, and storage systems. They let you put together metal racks, lockers, and workbenches really solidly and cleanly—no need for loose nuts and bolts on the back. That keeps things looking neat and helps save space.

    Thanks to its high-strength bonding characteristics, welded connections can provide reliable rigid support and stability for the structure. Even when bearing huge loads or weights, they can effectively resist deformation, displacement and other problems, ensuring that the overall structure always maintains a stable mechanical state.

    Versatile Weld Round Nuts

    Mon M4 M5 M6 M8 M10 M12
    P 0.7 0.8 1 1.25 1.5 1.75
    d1 max 10.9 11.9 13.3 17.9 19.9 22.7
    d1 min 10.5 11.5 12.9 17.5 19.5 22.3
    d0 max 2.8 2.8 3.2 4.3 4.3 5
    d0 min 2.5 2.5 2.9 4 4 4.7
    d2 max 0.95 0.95 1.5 2.1 2.1 2.5
    d2 min 0.65 0.65 1.2 1.8 1.8 2.2
    dk max 13.7 14.7 16.5 22.2 24.2 27.7
    dk min 13.3 14.3 16.1 21.8 23.8 27.3
    h max 1.35 1.35 1.55 2 2 2.5
    h min 1.1 1.1 1.3 1.75 1.75 2.25
    h1 max
    0.85 0.85 1 1.5 1.5 2
    h1 min
    0.65 0.65 0.75 1.19 1.19 1.78
    k max 4.45 4.7 5.2 6.8 8.4 10.8
    k min 4.15 4.4 4.9 6.44 8.04 10.37

    Packaging

    For big orders, we pack our Versatile Weld round nuts securely. We use strong, sealed cardboard boxes or heavy-duty plastic bags to keep them from rusting. Then we stack them on pallets for safe shipping by sea. That way, they show up clean, neat, and not damaged during delivery.
